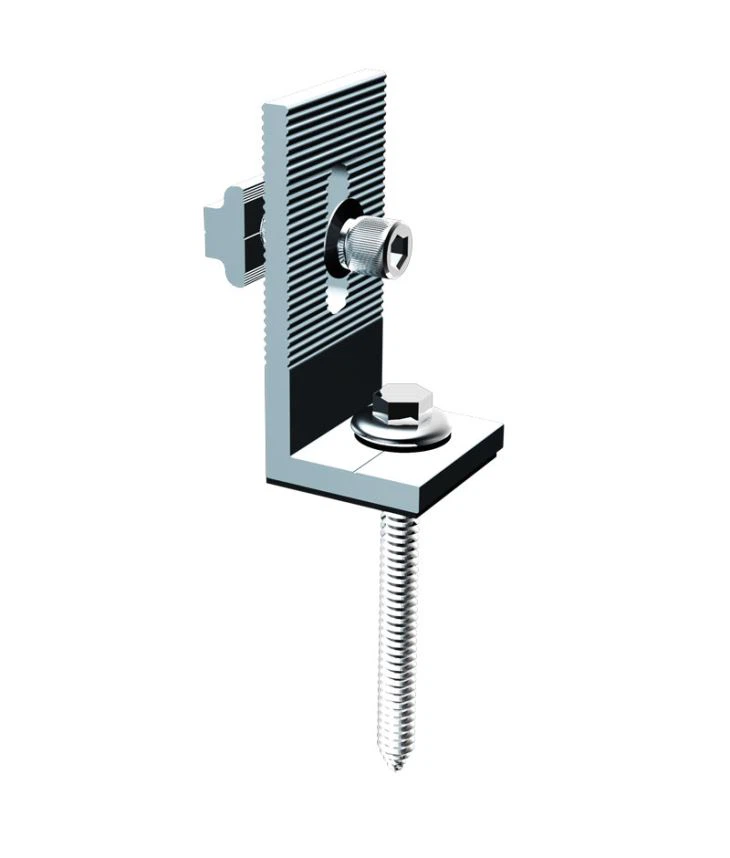

L Taw rau Hnub Ci Ru Tsev Saum Nruab Nruab Nruab Nruab Nruab Nrab Suav Tshaj Xeem Zoo

Khoom siv: AL6005-T5 & SUS304
Xim: Ntuj
Cov Qauv: SGS & ASNZS1170
Warranty: 10 xyoo

Hauj lwm lawm

L feet

L taw rau hnub ci sab saum toj installation Suav teb zoo tshaj plaws

Nrog variat of tin roof nkhaus, Wanhos tin phab ntsa mounting system tau raws li lub ru tsev trapezoid / corrugated hlau thiab sawv seam ru tsev xav nrog los yog tsis nkag mus rau hauv lub ru tsev.Wanhos muaj lub tuam txhab zoo heev thiab cov kev tswj zoo los muab cov kev pab zoo meej.

Wanhos L taw

L taw

L taw Cov ncauj lus qhia

Installation Site	Ru sab saum toj
Cov khoom	Al6005-T5 & SUS304
Anti-corrosive	Anodized
Max cua ceev	Mus txog 60m / s
Max snow load	Mus txog 1.4 KN / ㎡
Cov Qauv	AS / NZS1170 & SGS & TUV & DIN
Xim	Natural & Dub
Lub tsev qhov siab	Mus txog 20m
Pobzeb kaum sab xis	Mus txog 60 degree
Warranty	10 xyoo

L taw

L cov kev pab cuam

1.Easy Installation.

Cov khoom tshiab tau zoo heev ua kom yooj yim lub installation ntawm PV modules.Qhov system yuav ntsia nrog ib tus Hexagon Key thiab cov khoom siv cuab yeej txheem.Qhov system yog aided los ntawm ib theem siab ntawm pressembly.The T-screw module thiab cim rail extension txoj cia txo cov sij hawm muab installation heev.

2.Qhov Nyuaj Siab.

Nrog Wanhos Solar, frammed photovoltaic modules yuav tau yooj yim mounted ntawm pitched roofs.Our lawv muaj mounting accessories tsim los siv rau yuav luag txhua lub ru tsev cladding muaj.

3. Ua Siab Tshaj.

Tsis tas siv qhov chaw txiav, qhov kev siv ntawm peb txoj kev tsheb ciav hlau txuas mus tso cai rau lub kaw lus nrog lub ntsuas millimeter.

4.Xaiv Kev Xa Mus Ntxiv.

Qhov siab hloov ntawm cov ntsia ntawm Wanhos pub rau qib PV array tsim, tsis muaj teeb meem li cas tsis ncaj ncees rau lub ru tsev.Wanhos yog ua kom siab tshaj plaws, zoo thiab muaj zog nws tsim los ua raws li AS / NZS 1170.

5.Saib Lifespan.

Tag nrho cov cheebtsam uas ua los ntawm kev zoo ntawm extruded aluminium thiab stainless hlau.Tus siab corrosion kuj guarantees lub maximun tau lifespan thiab tseem recyclable kiag li.Vanhos muab ib guarantee ntawm 10 xyoo ntawm lub durability ntawm tag nrho cov khoom siv.

L feet

L taw

khuam khawb taub hau

Xiamen Wanhos Hnub Ci Technology Co., Ltd. yog lub koom haum hightech hauv hnub ci PV thaj chaw ua haujlwm hauv hnub ci PV khoom nrog kev siv tshuab thiab cov kev pab zoo heev. Wanhos Cov neeg sab nrauv ua lawv tus kheej mus tshawb fawb, tsim, tsim khoom thiab muag qhov kev yees, kev ntseeg siab thiab cov nuj nqi hluav taws xob ua haujlwm PVAR mounting system. Raws li ib yam ntawm cov khoom loj tshaj plaws PV solar khoom exporter hauv Suav teb, cov khoom pioneering tau raug kho hauv ntau tshaj 100 lub teb chaws thiab cov cheeb tsam txij li nws tau tsim.

L taw

Kev Tswj Tswvyim

Wanhos Solar Hnub Tuaj Lub Teeb Nruab Hnub Tuaj Yeem Lub Tswv Yim Txhim Kho Lub Tswv Yim Txhawb Kev Kawm Txuj Ci Rau Txhua Tus Txheem thiab tom qab muab kev pab.

L taw

L feet

Xav paub ntxiv. rau peb tsim thiab cim

& nyuj; Dab tsi yog koj qhov teeb meem pv pav? ___mm Ntev ntev x___ hli Dav x__mm Thickness
& nyuj; Pes tsawg lub vaj huam sib luag yog koj mus rau pem roob? _______Nos.
& nyuj; Dab tsi yog qhov qaij kaum? ____degree
& nyuj; Dab tsi yog koj npaj pv assmebly block? ________Nos. nyob rau hauv ib tug kab
& nyuj; Yuav ua li cas yog huab cua muaj, xws li cua ceev thiab daus load?
___ m / s siab ceev cua thiab cua hlob ____ KN / m2.
