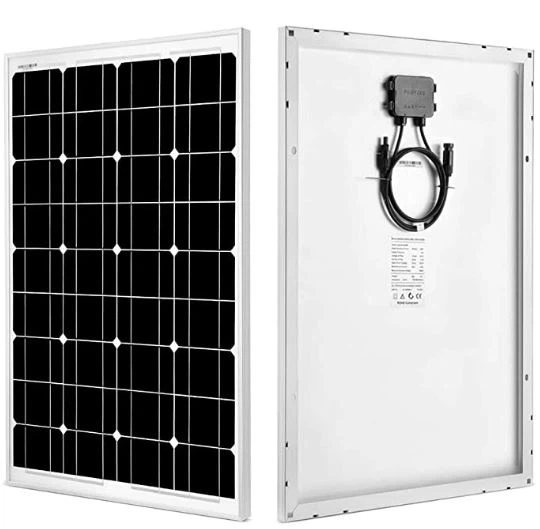

Monocrystalline Hnub Ci Vaj Huam Sib Luag 60Watt Hnub Ci Module

1pcs 60W Monocrystalline Hnub Ci Vaj Huam Sib Luag （Qib Lub Hnub Ci Lub Nruab Nrab)

1. Ntev lub neej ncua hluav taws xob hnub ci

2.Durable Aluminium anodized thav duab

3. Yooj yim rau kev nkag siab, yooj yim rau nqa, txhua yam khoom siv tau rau chaw pw hav zoov, tawm mus

4.Fitted 19.6inch Cable nrog hnub ci vaj huam sib luag txuas rau kev txuas yooj yim

5.IP65 Reted hwm hlws ris box nrog ua hauv lub nplhaib

6.Inner Bypass doide tsim los tiv thaiv lub vaj huam sib luag

7.Txoj kev tsim cov ncej rau kev txhim kho yooj yim thiab txuas

8.Adopt siab transmittance tempered iav zoo

9.Absorbs siab tshaj plaws tshav ntuj nyob rau txhua hnub nruab hnub

Tus Qauv Hom: SG-60WM

Tus Nqi Them Zog Loj: 60W

Voltage ntawm Pmp: 18.2V

Tam sim no ntawm Pmp: 3.3A

Qhib Circuit Court voltage: 22.2V

Lub voj voog luv tam sim no: 3.6A / kam rau ua: ± 3%

Kev Ua Haujlwm Temp.Scope: -40 / +85 ℃

Tus Kheej Txheeb Ze: 0 txog 100%

Max.Syst.Oper.Voltage: 1000V

Nqa Nyhav: 10LB / Qhov Loj: 30 * 21.2 * 1.2inch

Lub vaj huam sib luag ntev ntev 60W monocrystalline hnub ci, cov qauv tsim dej tsis pom tseeb tias lub vaj huam sib luag tuaj yeem siv hauv txhua qhov huab cua.

IP67 Rated waterproof hnub ci vaj huam sib luag txuas thiab ncav cuag 25 xyoo kev pabcuam sab nraum zoov lub neej kev ua haujlwm.

Pob suav nrog:

1 * 60W Monocrystalline hnub ci vaj huam sib luag

• 1.Qhov qhov siv tau ntev ntev 60 Watt monocrystalline lub hnub ci vaj huam sib luag thiab cov tawv, kaw ruaj ruaj, tsim qauv ntsuas dej kom ntseeg tau tias lub vaj huam sib luag tuaj yeem siv tau nyob hauv txhua qhov huab cua.

• 2.Corrosion-resistant aluminium ncej rau kev siv sab nraum zoov thiab yuav muab koj xyoo thiab xyoo ntawm kev ua kom sib xws, muaj zog dawb.

• 3. yooj yim plahaum nrog lub qhov dej uantej. Qhov no high efficiency waterproof 60W monocrystalline hnub ci vaj huam sib luag yog zoo meej rau qhov siv sab nraum zoov siv hluav taws xob dawb rau them 12V roj teeb rau lub zog siv ntau cov ntawv siv hluav taws xob tsawg.

• 4.Solar Vaj Huam Sib Luag Loj: 30 * 21.2 * 1.2inch, Nyhav: 10LB, Warranty: 25 Xyoo hloov xa hluav taws xob rau cov hnub ci vaj huam sib luag thiab 1-xyoos ntawm kev so ntawm cov khoom siv.

Haum rau kev siv sab nraum zoov

Corrosion-resistant aluminium ncej rau ncua kev siv sab nraum zoov. Tau ntsia lub vaj huam sib luag ncaj ntawm lub ru tsev thiab tsim kom muaj zog txaus.

Qhov no zoo meej rau RV, yog tias koj tab tom nrhiav rau hnub ci them RV lossis cab, qhov no yog qhov koj xav pib.

Haum rau Caravan, RV, Tsheb Golf, Tsheb fais, Yacht, Nkoj, Tsev pheebsuab lossis hnab ev ntawv ect.

Xiamen Wanhos Hnub Ci Technology Co., Ltd. yog hightech enterprise hauv hnub ci PV teb tshwj xeeb hauv hnub ci PV cov khoom lag luam nrog cov thev naus laus zis thiab kev pabcuam zoo. Wanhos Hnub Ci cov tswvcuab mob siab rau lawv tus kheej rau kev tshawb nrhiav, tsim, tsim khoom thiab muag thiab khov kho, ntseeg tau thiab muaj hnub ci PV mounting system daws teeb meem. Raws li ib qho ntawm PV hnub ci loj tshaj plaws cov khoom lag luam xa tawm hauv Suav teb, cov khoom lag luam pioneering tau nruab rau ntau dua 100 lub teb chaws thiab cheeb tsam txij li nws tau tsim.

Kev Tswj Tswvyim

Wanhos Hnub Ci coj mus rau pem hauv ntej kev tswj hwm tus qauv thiab thoob ntiaj teb kev tswj hwm thaum pib ntawm nws txoj kev tsim, zoo coj los thiab nruj me ntsis raws li ISO9001: 2008, CP, APQP, FMEA, MSA, SPC thiab lwm yam thoob ntiaj teb zoo tswj system hauv txhua ntu nrog R& D , kev tsim khoom, ua lag luam thiab tom qab kev pabcuam.
